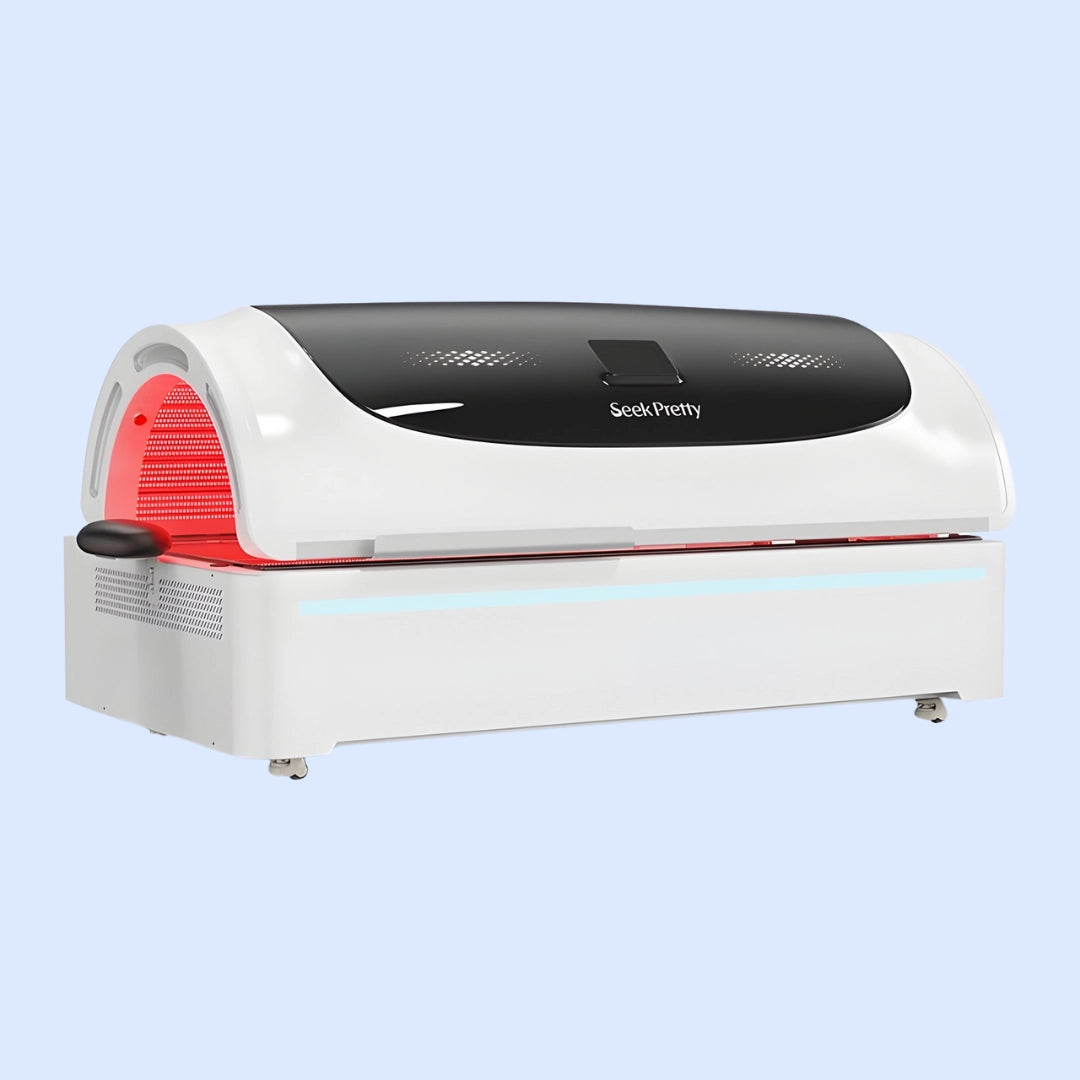

Magic Power Red Light Therapy Bed, Medical‑Grade Full Body Infrared/NIR LED, 129 mW/cm², 633–940 nm

The Magic Power red light therapy bed delivers medical‑grade, full‑body photobiomodulation for high‑throughput sports recovery clinics and premium wellness centers. Powered by original Epistar LEDs and calibrated across 633nm, 660nm, 810nm, 850nm, and 940nm, it provides uniform, deep‑penetrating light to help reduce inflammation, accelerate muscle recovery, and enhance performance. With true irradiance of 129 mW/cm2, a total of 43,200 LEDs, and 360° coverage, sessions are efficient, consistent, and comfortable from head to toe.

The LUM‑R4500 (Model No. 00762) pairs precision electronics with intelligent cooling and dual‑control operation (on‑device touchscreen and remote tablet), enabling seamless multi‑room management and uninterrupted operation during peak athlete flow. Custom branding and wavelength options make it ideal for sports facilities that demand professional results and a cohesive brand experience.

Key Benefits

• Full‑body 360° coverage for uniform dose and deeper penetration.
• True irradiance 129 mW/cm2 for fast, efficient sessions.
• Five clinically validated wavelengths 633–940nm targeting skin, muscle, and joints.
• Six operating modes, including muscle recovery and pain relief.
• Intelligent, self‑circulating cooling for stable, comfortable treatments.
• Dual‑control system; one tablet can manage up to 6 units within 200m.
• Custom branding and customizable wavelength combinations for specific sports protocols.
• Backed by a 5‑year full‑system warranty and lifetime LED chip guarantee.


Clinical Wavelengths

• 633nm (Red): Supports skin microcirculation; helps ease surface muscle fatigue.
• 660nm (Deep Red): Supports tissue repair and minor strain recovery.
• 810/850nm (NIR): Reaches deep muscle and joints to aid recovery and stiffness.
• 940nm (IR): Promotes blood flow and oxygen delivery; helps reduce DOMS.
• Customized mixes: Tailor wavelength combinations to specific athletic and rehab needs.


Programs and Modes

• Muscle Recovery: Enhances post‑exercise regeneration.
• Pain Relief: Optimized settings to address acute and chronic discomfort.
• Weight Loss: Metabolism‑supporting pulse protocols.
• Boost Collagen: Skin rejuvenation via collagen stimulation.
• Intelligent Mode: All 5 wavelengths at 100% intensity, no pulsation.
• Manual Mode: Full control of wavelength, frequency, intensity, and duration.

Technical Specifications

• Model: LUM‑R4500 | No. 00762
• LED source: Epistar | Quantity: 43,200
• LED lifespan: 100,000h
• Irradiance: 129mW/cm2
• Wavelengths: 633nm, 660nm, 810nm, 850nm, 940nm (customizable)
• Machine power: 6000W
• Voltage: 220V / 380 V
• Current: 220 V:35A | 380V: 20 A
• Pulsing frequency: 1–10,000Hz
• Control: LCD touchscreen + tablet (up to 6 units, 200m range)

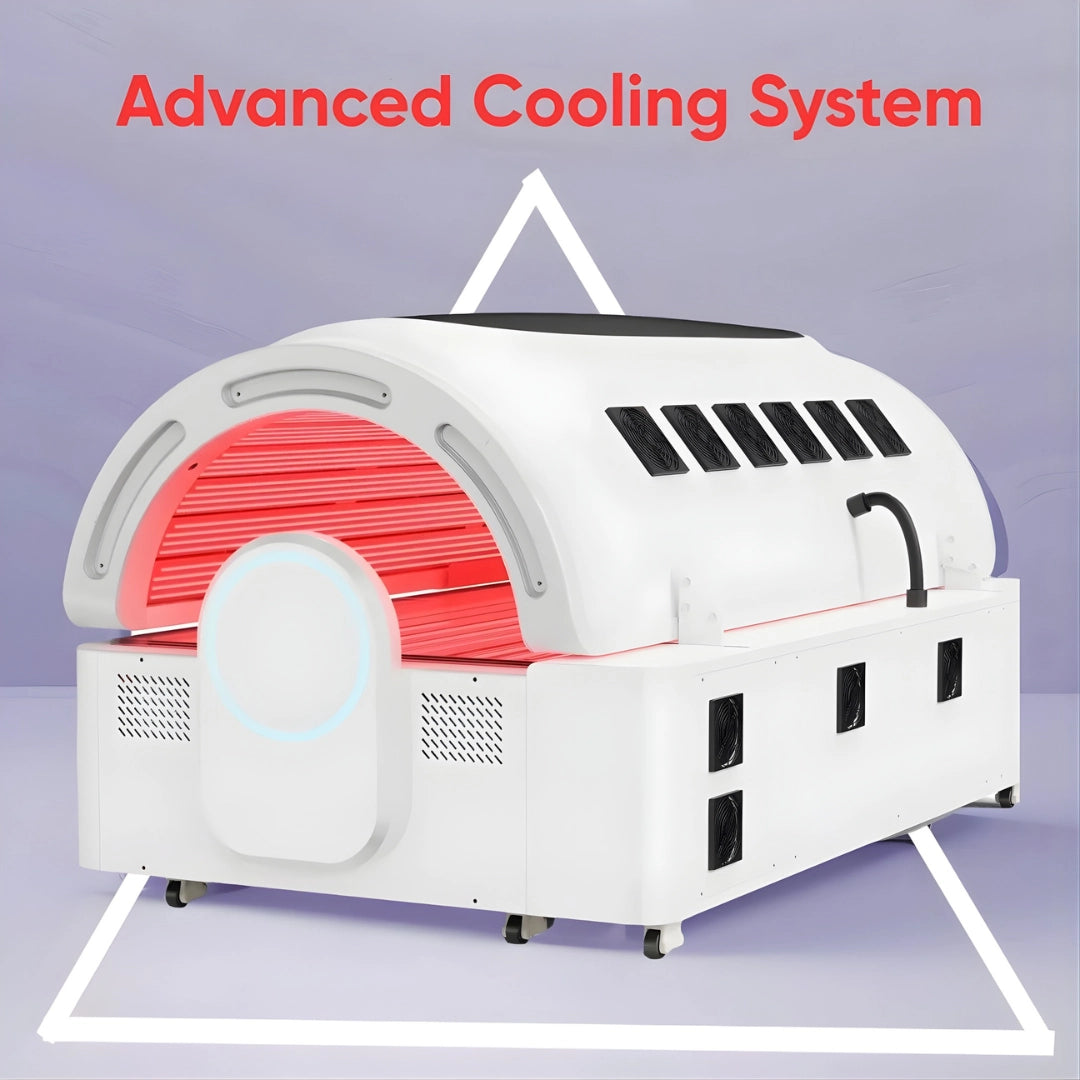

• Cooling: 32 unit fans + 1 body fan; 360° heat dissipation
• Dimensions:
• 2300×1260×1134 mm
• 2300×1260×1134mm
• Net weight: 360kg
• Cabin color: White/Black/Custom

Safety, Build, and Controls

• Premium LEDs with 99% gold‑wire bonding; wavelength tolerance ±3nm.
• High‑precision SMT assembly (placement accuracy 0.025mm) for stability and performance.
• Emergency stop button for instant shutdown.
• Zero EMF design for clean, safe light delivery.
• Overheat alarm settings monitor internal temperature and protect components.
• Immersive Bluetooth audio system; ergonomic cabin sized for Western body types.
• Materials: Imported ABS engineering plastic and aviation‑grade aluminum.

Ideal Applications

• Sports recovery centers and high‑performance gyms.
• Athletic training facilities and performance labs.
• Physiotherapy and rehabilitation clinics.
• Premium spas and wellness studios seeking medical‑grade results.
• Multi‑site operators needing remote fleet management.
